Zubehör & Sensorik

10 Bar Drucksensor 1/8 NPT für Benzindruck Öldruck Kraftstoffdruck ECUMASTER EMU MAXXECU TRIJECT

10 BAR Drucksensor mit 1/8 NPT Anschluss.Analoge 5V DrucksensorenUniversal verwendbar für zum Beispiel: Benzindruck, Öldruck, Kraftstoffdruck, Abgasgegendruck usw.Der Sensor kommt mit samt passenden Stecker.

16,66 €*

Details

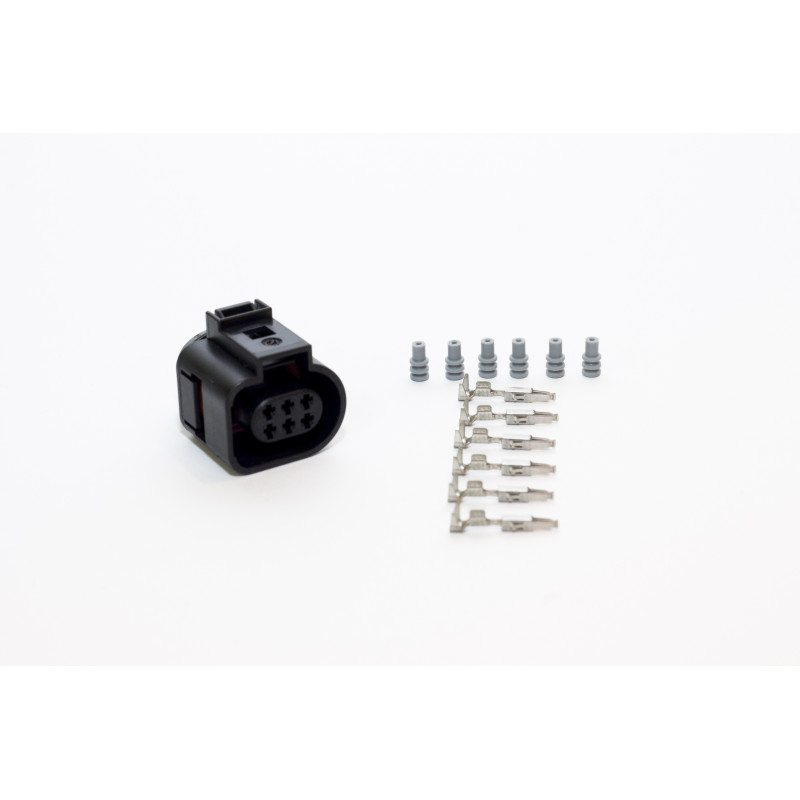

Steckerset Stecker für BOSCH LSU 4.9 Breitbandlambdasonde

Steckergehäuse mit Pins für Bosch Breitbandsonde LSU 4.9Original Bosch Steckergehäuse.

7,65 €*

Details

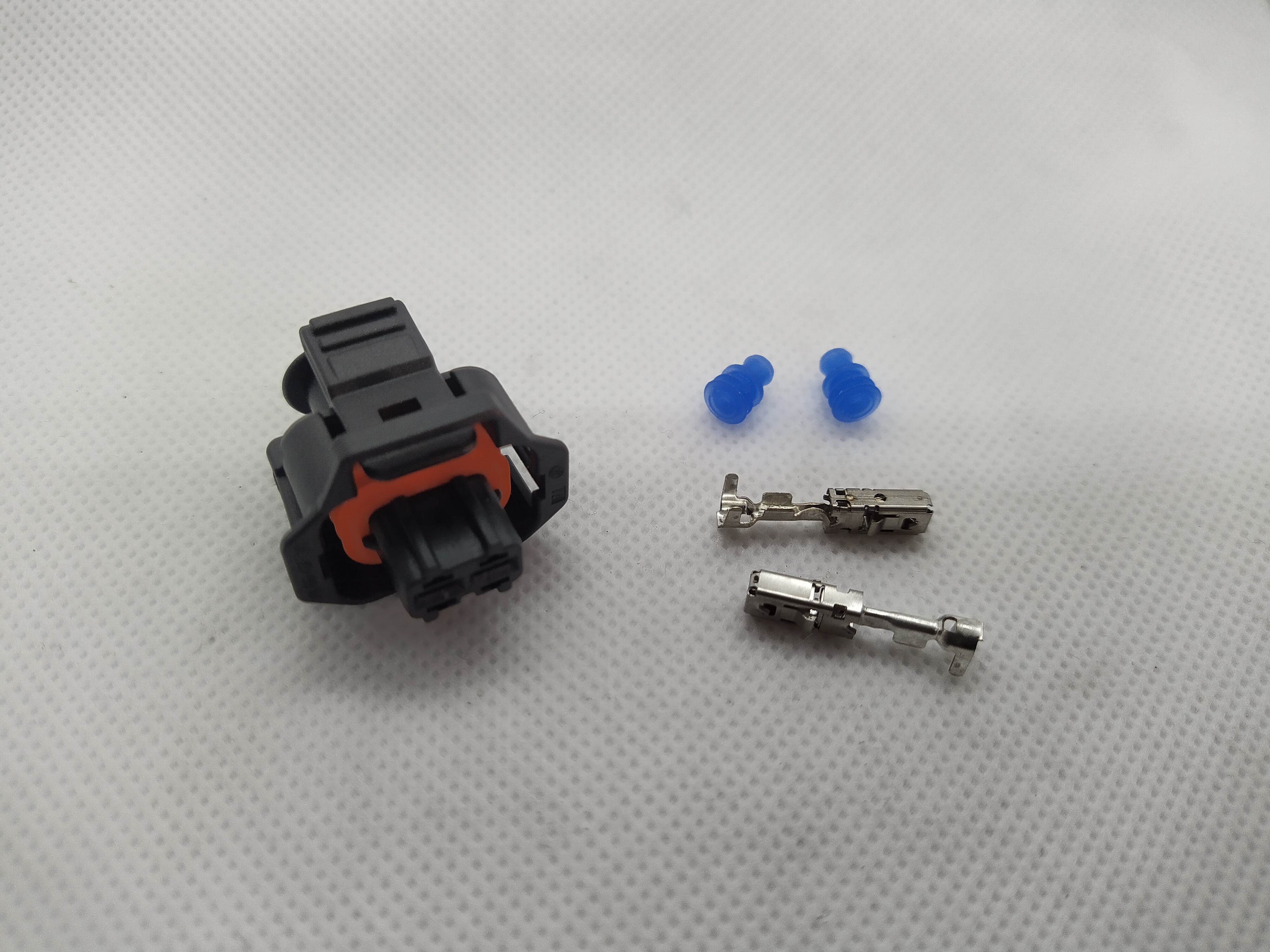

Bosch 2 PIN Stecker passend für Bosch Klopfsensor

Neuers Steckergehäuse mit Pins und Dichtungen.Passend für Bosch Breitband Klopfsensoren.

5,00 €*

Details

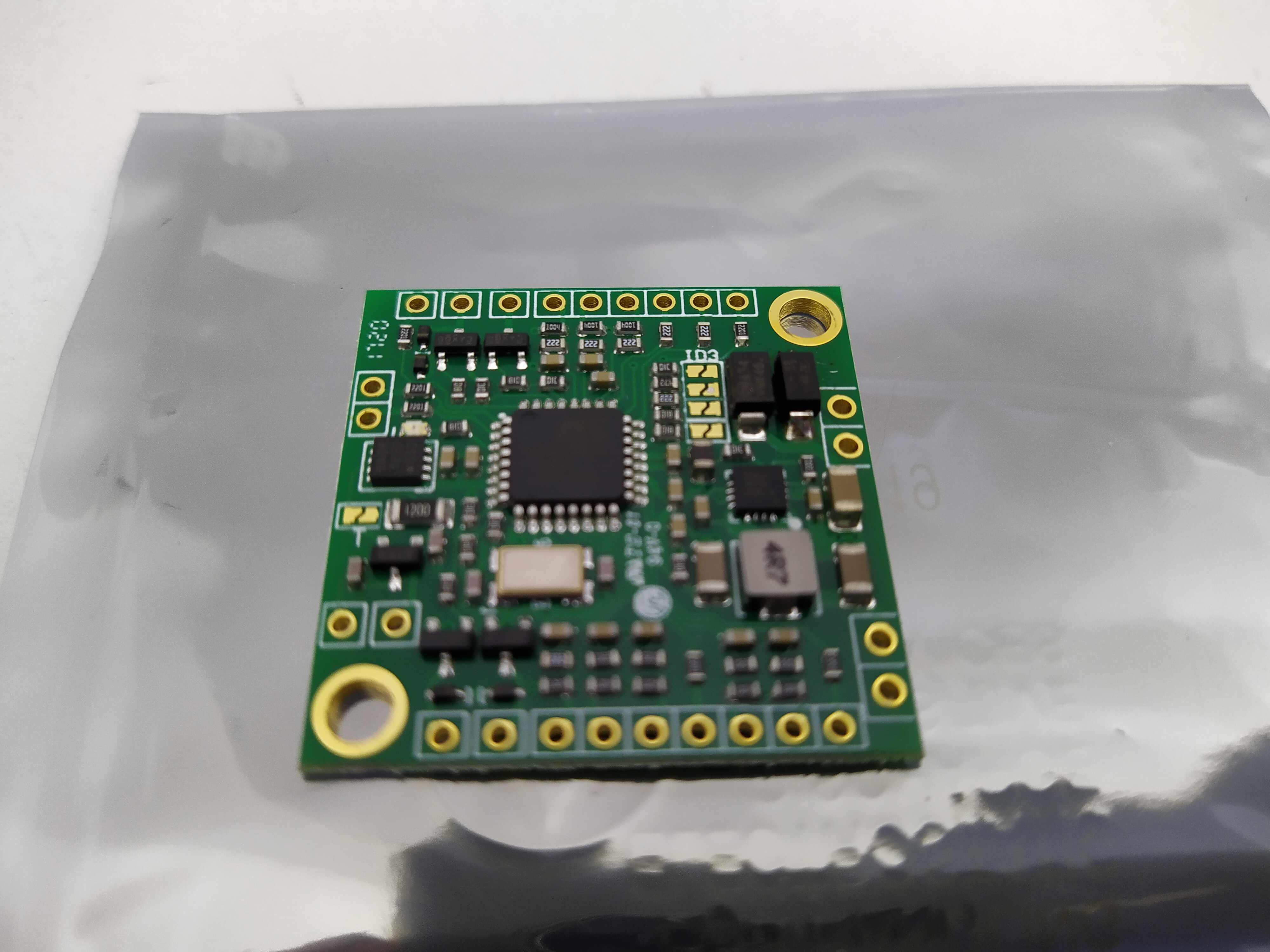

ECUMASTER CAN SWITCH BOARD V3

CAN SWITCH BOARD V3 A CAN switch board is a tiny device to allow easy transfer of up to 8 switch states and 8 analog signals over the CAN bus. In addition to this, the device has 4 built-in low side outputs that can be activated with a CAN bus message. The main purpose of this board is to build custom steering wheel panels containing buttons, rotary switches and indicators. The switchboard device is designed to work with EMU BLACK and PMU. It can also be used with any other devices with custom configurable CAN bus inputs. Key features CAN BUS 2.0B 500 or 1000kbps, user selectable different CAN ID and CAN frame structures can be selected, only 25x25mm in size, 8 switch inputs (switched to ground) 8 analog inputs / rotary switch inputs, 0-5V, 10bits 4 low side outputs (0.5A, resistive and inductive loads) 6-22V power supply +5V output for powering rotary switches, sensors and potentiometers firmware upgrade over the CAN bus

139,00 €*

Details

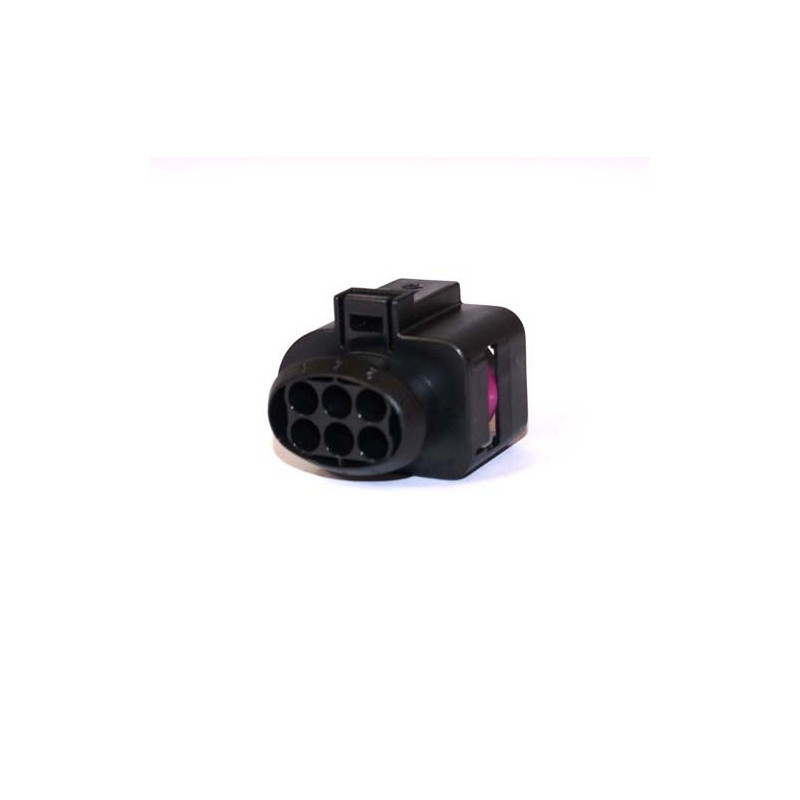

Steckerset Stecker für BOSCH LSU 4.2 Breitbandlambdasonde

Steckerset für BOSCH LSU 4.2 Breitbandlambdasonde

7,65 €*

Details

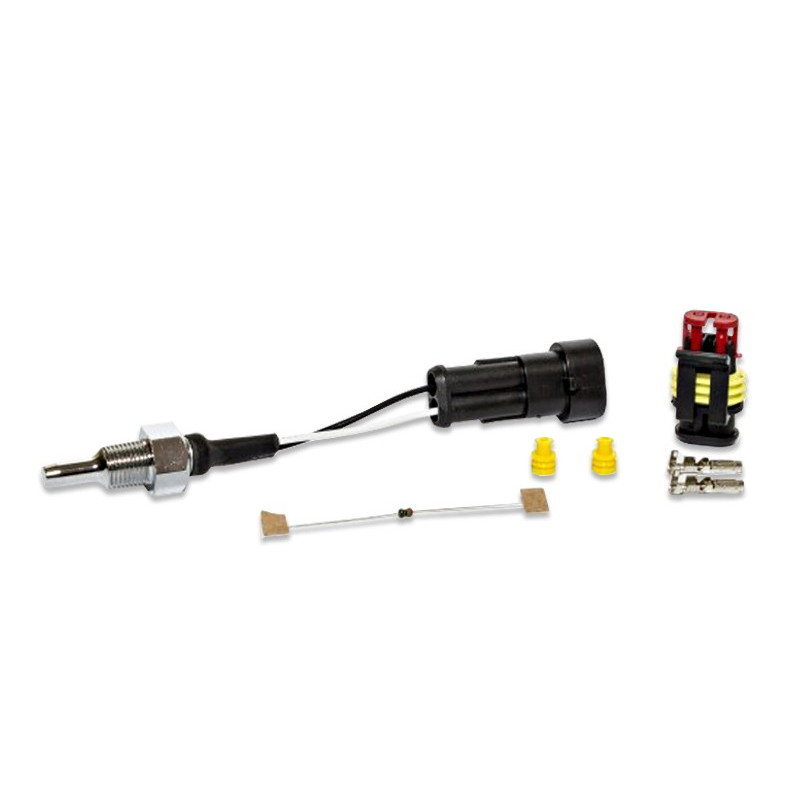

ECUMASTER ÖL Oil Temperatur Sensor 1/8 NPT

Original ECUMASTER Oil Temperatur Sensor.1/8 NPT GewindeSet kommt mit Stecker, Widerständen und Sensor

25,00 €*

Details

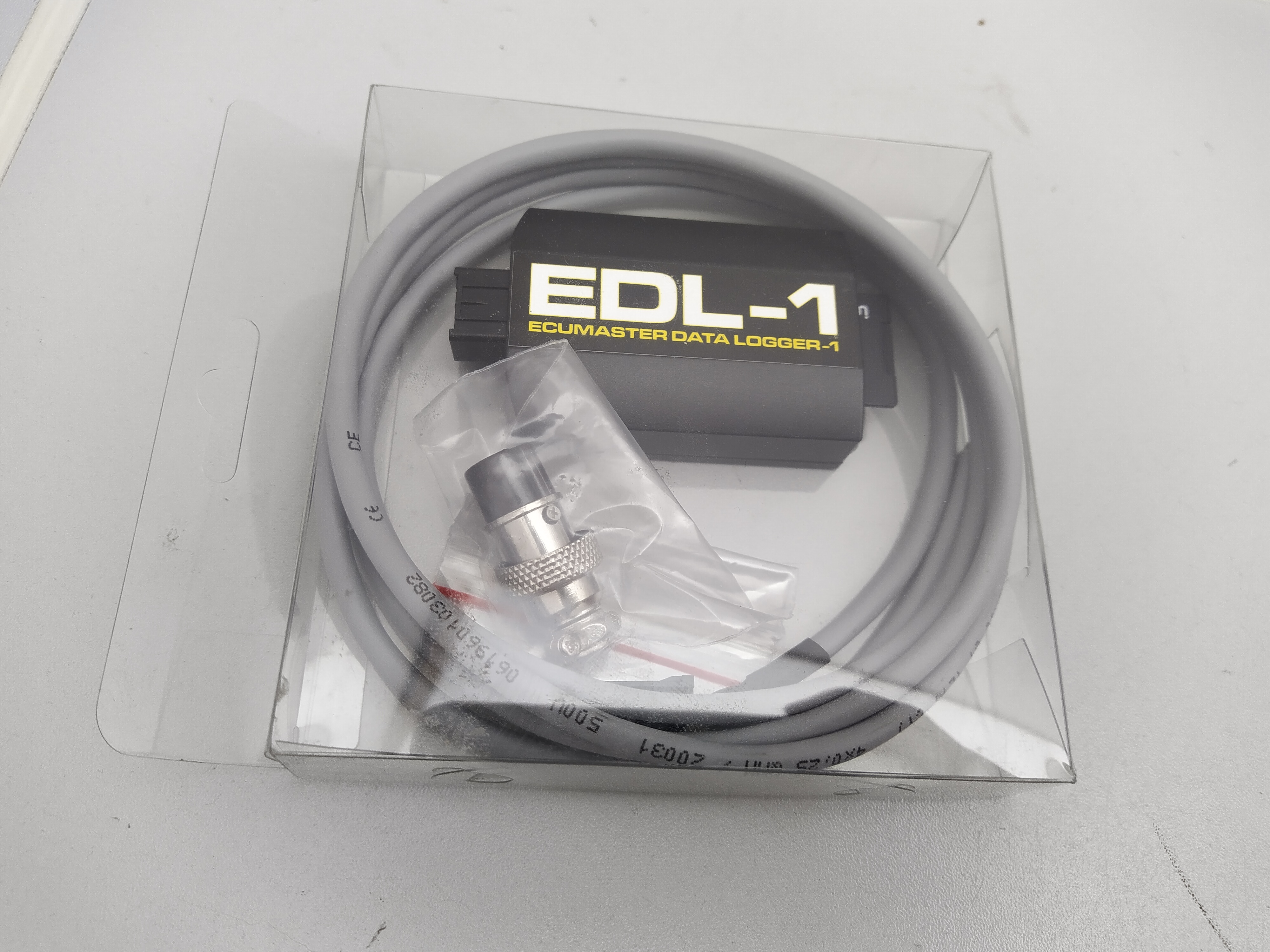

ECUMASTER DATA LOGGER - EDL-1

The EDL-1 data logger is a “must have” for any professionals using the EMU, EMU CLASSIC and the EMU BLACK device. Utilizing serial communication, this device is able to record over 200 data channels with a frequency of 25Hz. Use of the popular SDHC cards with FAT32 file system means reading data on PC computer is fast and simple. The average data rate allows to record about 11 hours per 1GB of memory card space. For time stamping there is built in battery powered RTC clock. Additionally, the EDL-1 device is equipped with a Bluetooth module to communicate with an Android tablet device. Key features works with EMU and EMU BLACK using serial communication, > 4GB SDHC memory cards with FAT32, built in BlueTooth module, bespoke anodized aluminium enclosure with two LEDs indicating device state, memory card transfer and Bluetooth communication,

159,00 €*

Details

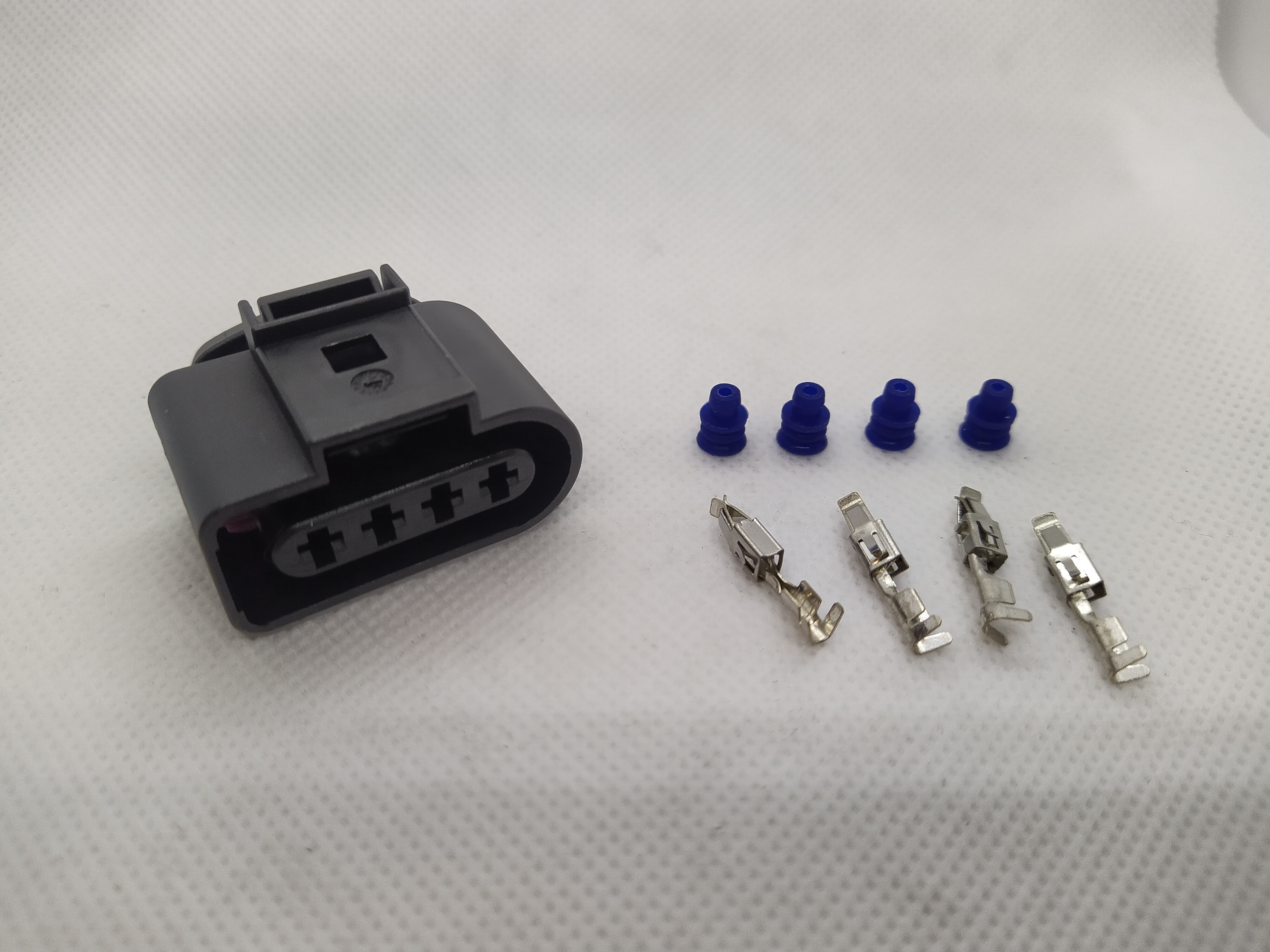

Stecker passend für TFSI Zündspule Stabzündspulen 1J0973724

Stecker passend für die schwarzen und roten TFSI Stabzündspulen

8,00 €*

Details

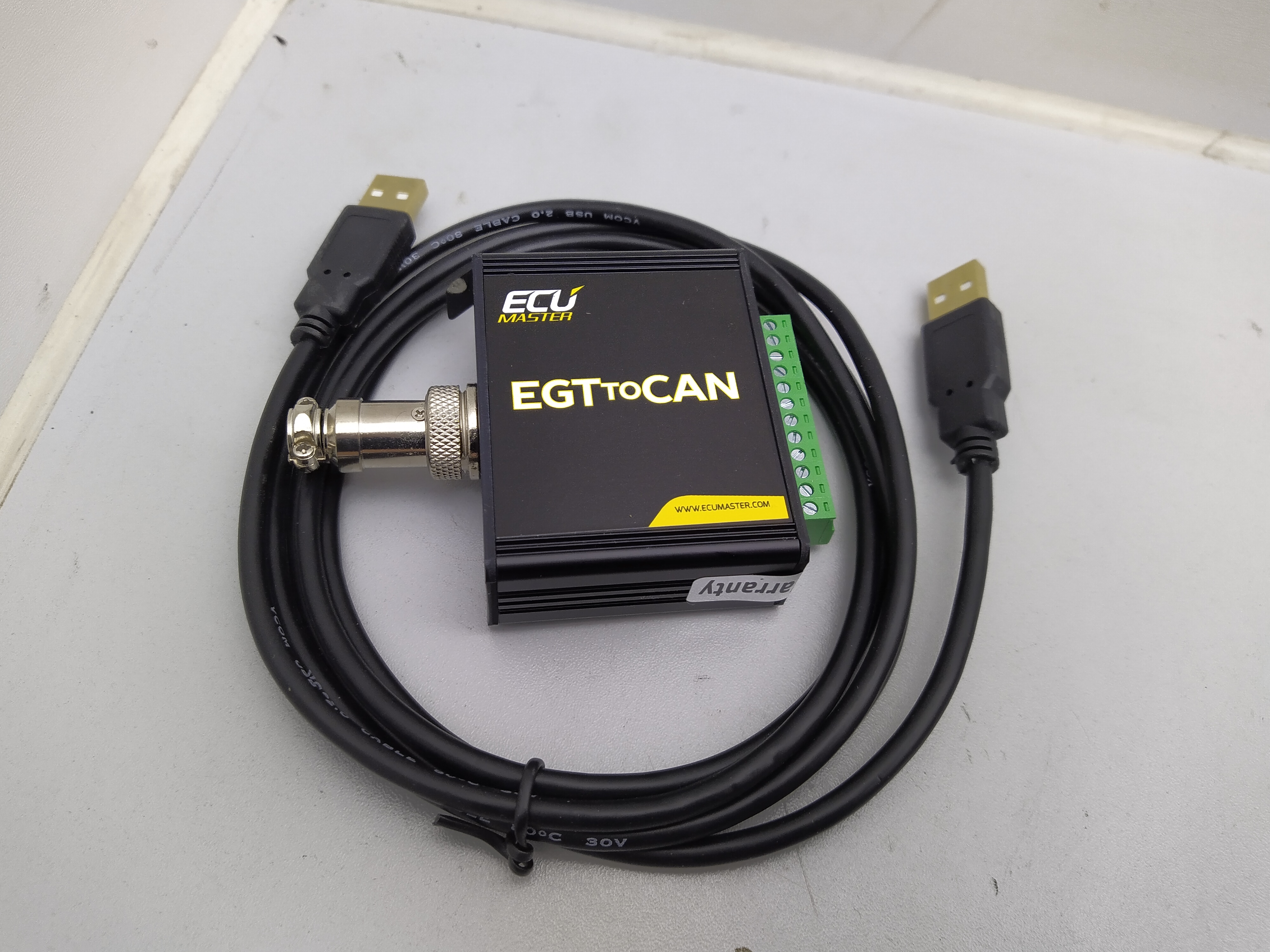

Ecumaster EGT to CAN module

EGT to CAN The EGT to CAN module collects input signals from 8 EGT probes (K-Type thermocouples), converts the probe voltage into a numerical temperature figure and sends the appropriate data via a CAN bus. The module is fully configurable using USB connection and Microsoft Windows based client software. High quality EGT sensors are available on request. Using ECUMASTER EMU engine management it is possible to trim each cylinder fuel dose based on EGT temperatures readings. Protect your engineagainst failure This function can be used as a powerful tool in the protection of possible engine and auxiliary engine component failure. With the EGT temperature data that is collected it is possible to trim each cylinder fuel dose in the ECUMASTER ecu. Product features Up to 8 EGT probes, Cold junction compensation 0-1250C input range CAN 2.0 compatible Configurable CAN bitrate, byte order (Intel, Motorola), message IDs USB port for PC connection Client software for configuration and temperature monitoring

145,00 €*

Details

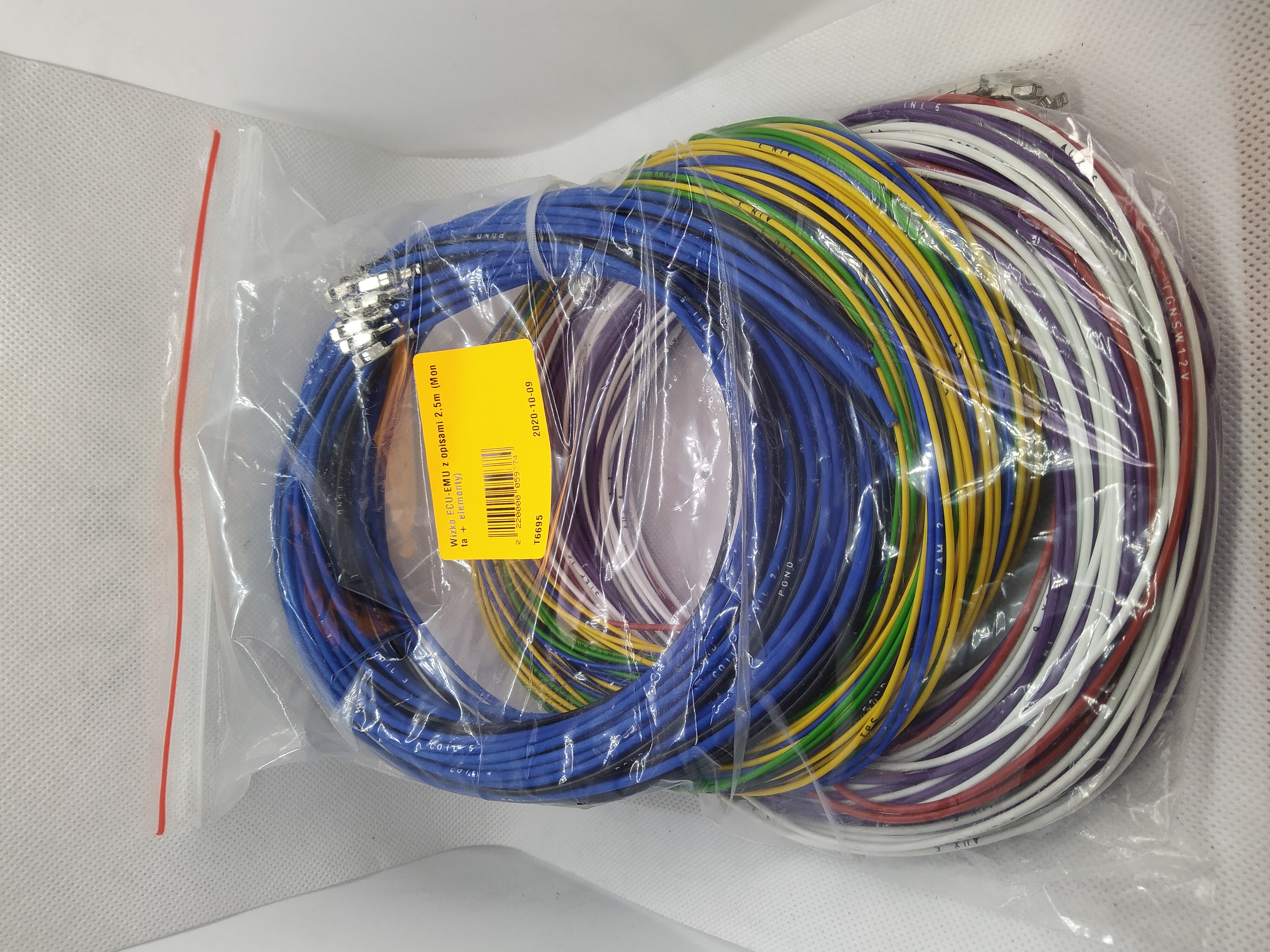

Kabelbaum universal 2.5m EMU

Universeller Kabelbaum, um die Installation des Geräts zu erleichtern. Er besteht aus Adern, die für den Gebrauch in der Automobilindustrie bestimmt sind. Darüber hinaus ist am Ende jedes Kabel ein Stecker-VG Der Strang besteht aus 43 Drähte mit einer Länge von 2,5 m einschließlich:19 Adern mit einem Querschnitt von 0,5mm²12 Adern mit einem Querschnitt von 0,75mm²9 Adern Sqmm ( einschließlich 6 Adern LGY vorgesehen für Zündspulen )3 Adern mit einem Querschnitt von 1,5mm²

84,99 €*

Details

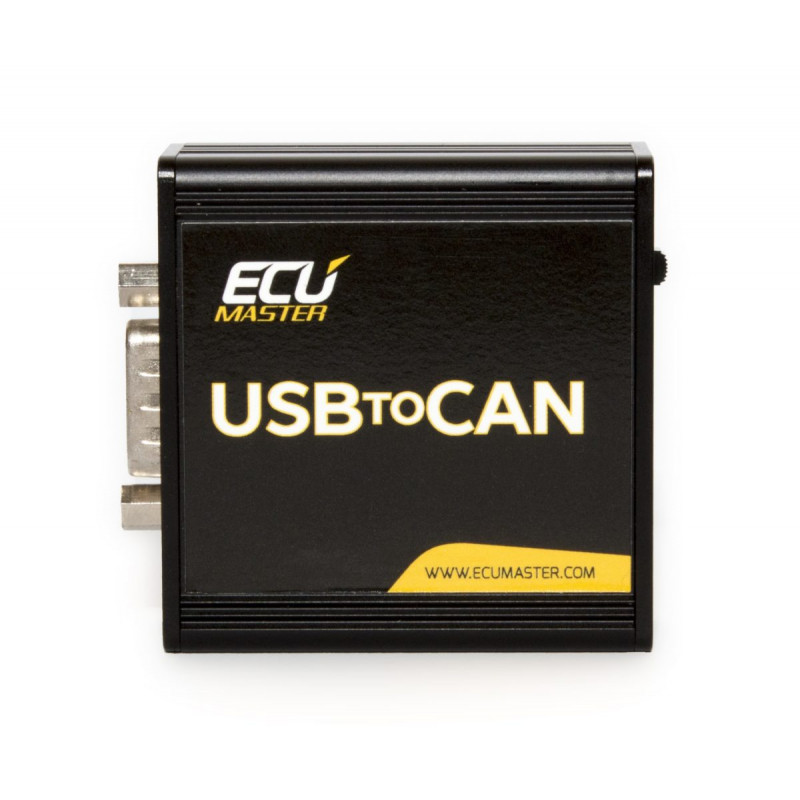

Ecumaster USB TO CAN MODULE

USB to CAN The ECUMASTER USBtoCAN is a USB interface that allows the user to connect to the CANbus network. It supports CAN 2.0A and CAN 2.0B standards. It is equipped with a LED status diode for fast diagnostic and a 120 Ohm terminator that can be switched on or off to relieve the user from applying external terminators. This device is used to communicate with the PMU.A version with galvanic isolation is also available.

119,00 €*

Details

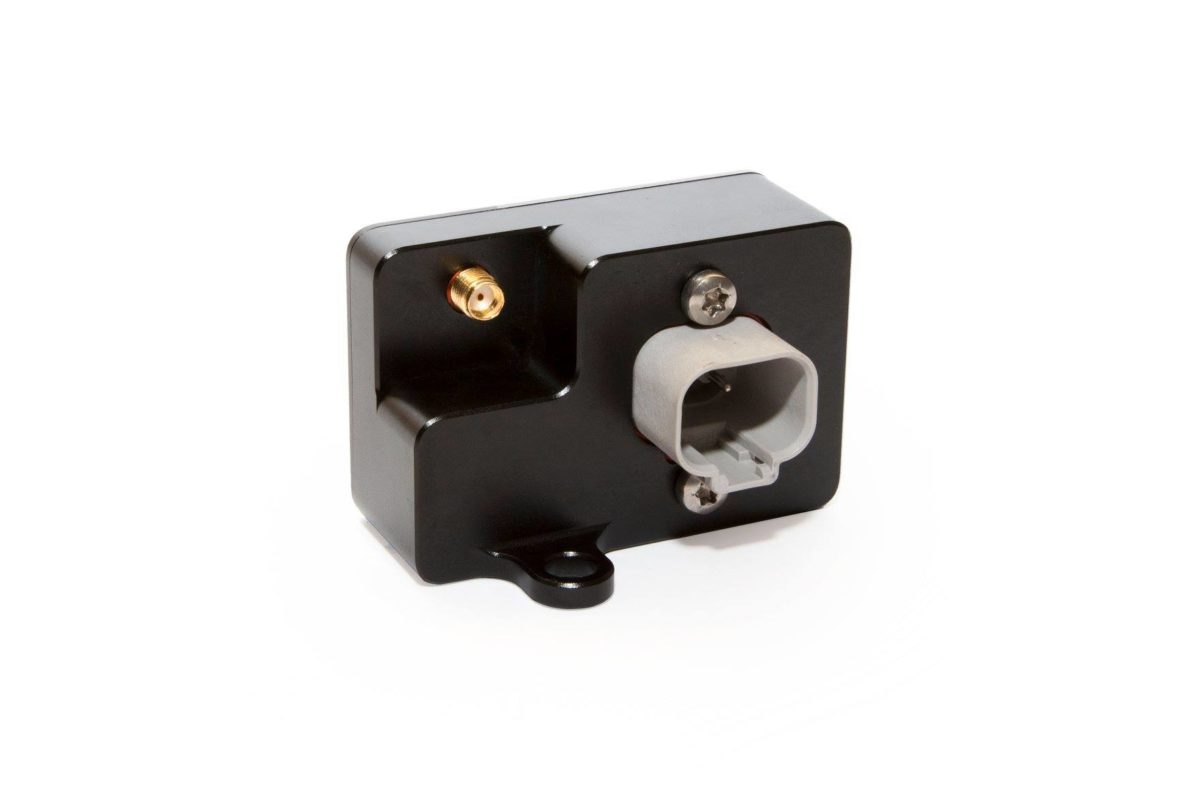

Ecumaster GPS to CAN Modul

Ecumaster GPS module assures high accuracy position tracking with20Hz update rate. The module is able to use GPS, Glonass and Galileosatellites using the included external active antenna. Thanks to a builtin 3-axis accelerometer and gyroscope, the device can deliver informationabout speed, position, heading and altitude.All GPS data is transmitted via CAN bus.GPS module is intended to work with the ADU display/logger and allowsreal time lap timing, predictive timing as well as off-line track mapsand data analysis.

299,00 €*

Details

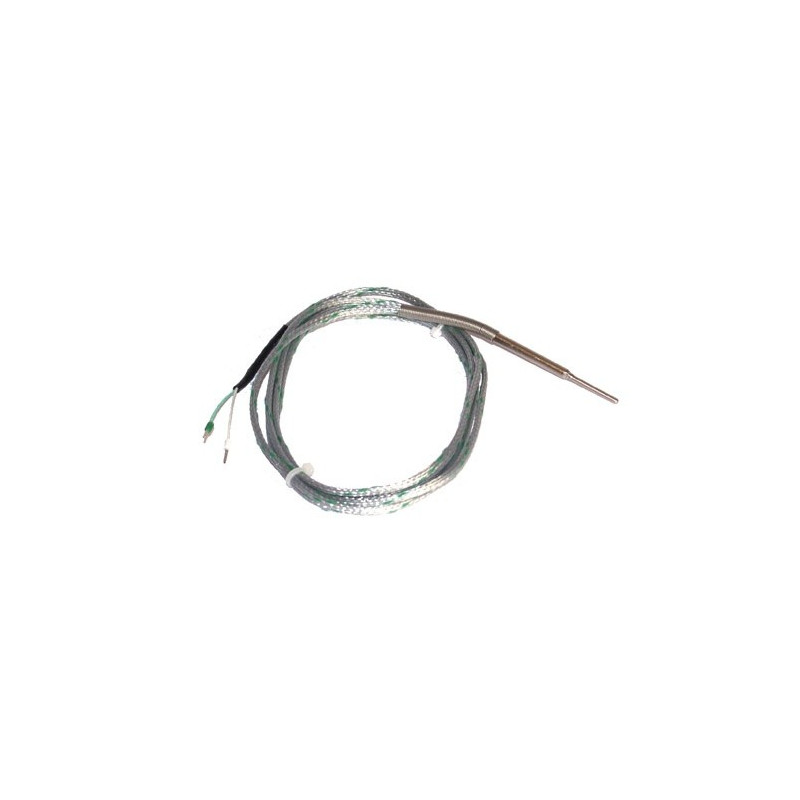

Abgastemperatursensor EGT Set Typ-k

Der Abassensor wird mittels einer Einschweißmuffe befestigt.Das Anschluss Kabel ist 3m lang Lieferumfang: 1x Sensor Typ-k1x Anschlusskabel1x Einschweißmuffe

69,00 €*

Details

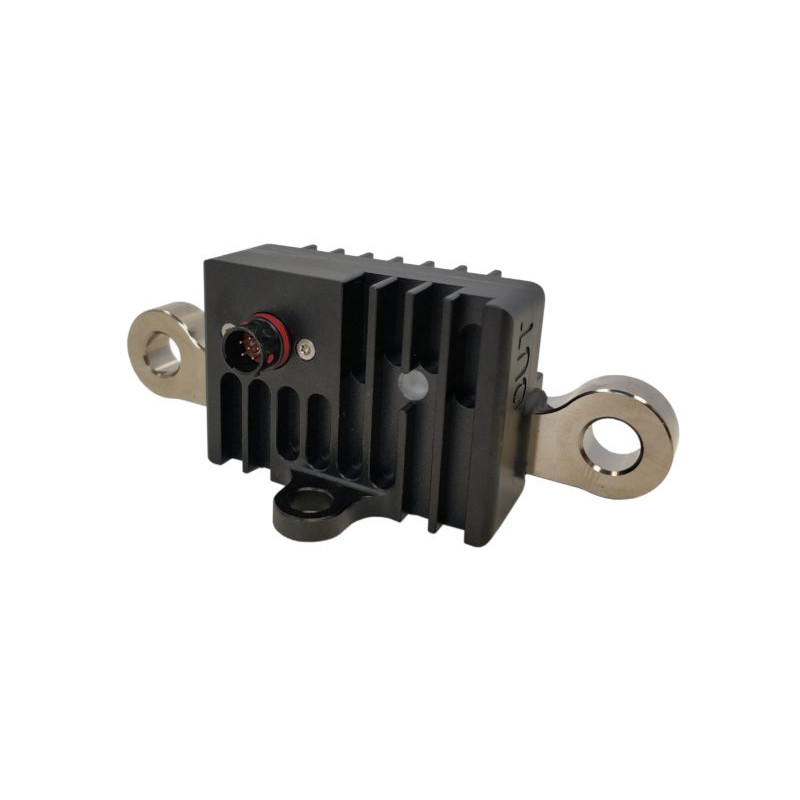

ECUMASTER BATTERY ISOLATOR M8

BATTERY ISOLATOR Ecumaster Battery Isolator is a motorsport master relay devicedesigned for FIAcompliant battery isolation and engine shutdown.The device is designed for harsh motorsport environments and weighsonly 83g. Featuring a full solid-state design, an absence of mechanicalcomponents ensures long life and high reliability.The device has built-in alternator load dump protection without theaddition of any external components.There is no risk of damage to expensive electronic equipment duringemergency shutdown. The isolator is controlled with two externalswitches and can be shut down with a CAN-bus message.The message may be sent from an Ecumaster PMU16 unit in the caseof impact or another event. The device is configurable through CANbus.It also sends diagnostic information which can be used by otherequipment and is valuable during device setup and diagnosis. It is fullyprotected against overheating and over-current.Device status is indicated with a multi-color led light. Key features •Weight: 83g•Dimensions: 50mm x 100mm x 38.5mm•Voltage range: 6V – 19V, 28V transient(12V automotive installations only)•Operating temperature range: -40C + 125C•Current capability: 300A continuous, peak up to 1000A•Current measurement resolution 4A•Current measurement range: -1000A to 1000A•Current measurement accuracy: ±10%•Inductive load switching capability: 600mJ•Enclosure: Anodized aluminium, IP67 rated• High current terminals: M8 nickel plated terminalsor Radlok connectors•Signal connector: Deutsch ASX202-06PN(mating plug ASX602-06SN included)•Power save state current consumption: <1mA•ON state current consumption: ~20mA•Engine kill output: 3A, High (VBat), Low (GND) or Hi-Z

399,00 €*

Details

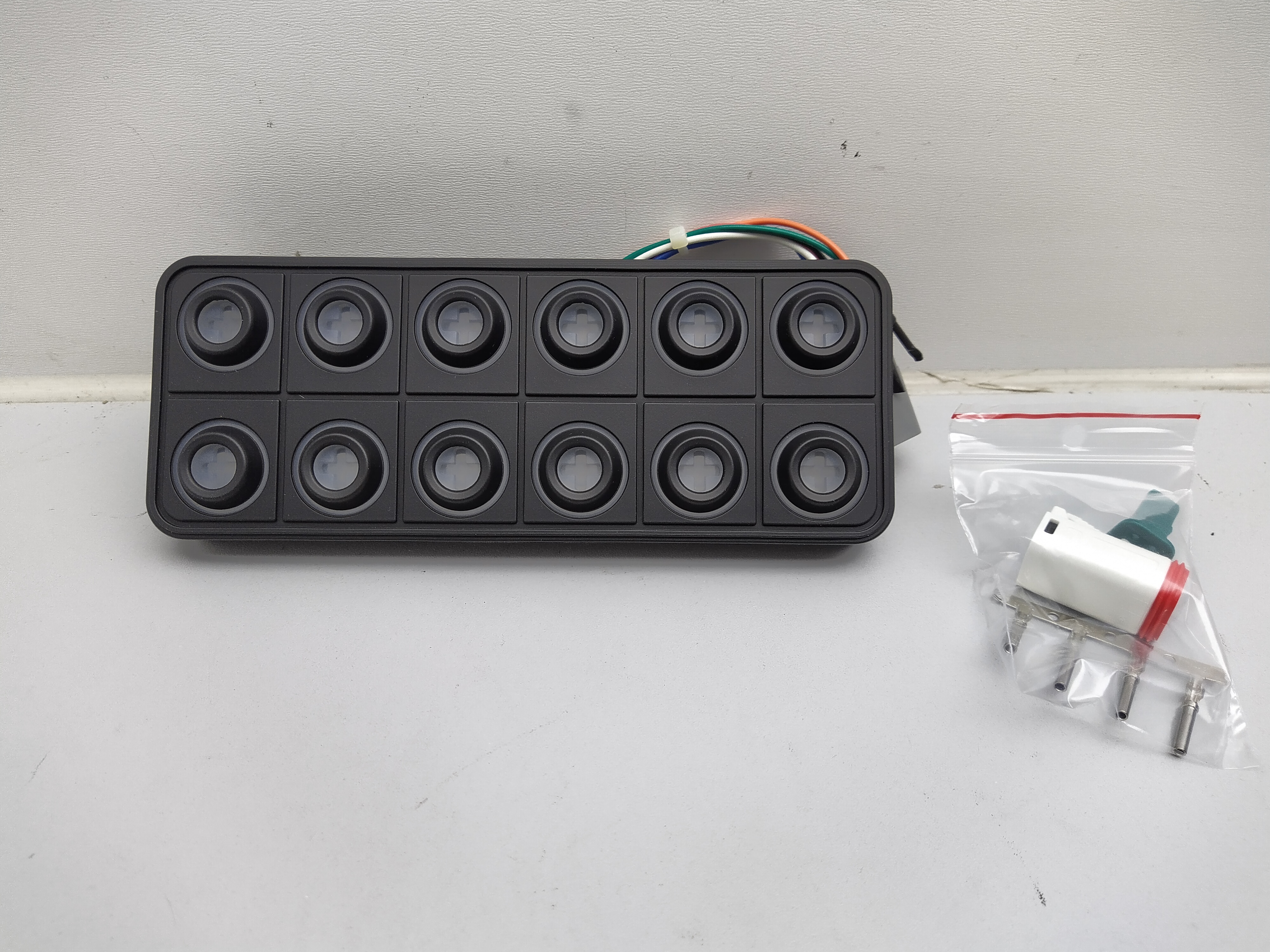

Ecumaster CAN keybord 12 buttons

Our range of products also includes CAN-bus based keyboard (available with different key layouts). Designed to withstand the harshest conditions, completely immune to water, mud or fuel. We should also to mention that as compared to a traditional switch panel the wiring is greatly simplified. Built in LEDs indicate button state (RGB colors) and additionally act as back-light for the keyboard. The behaviour of individual keys is fully configurable using EMU BLACK or PMU client software. The unique idea of a replacement system for individual inserts means it is easy to rearrange the keypad layout using the existing insert without affecting appearance. Moreover, custom inserts can be supplied. Key features CAN bus compatible keyboard, 125kbps, 250kbps, 500kbps CAN bus speed supported, works with EMU BLACK (1 keyboard) and PMU devices (up to 2 keyboards), full customization possible, IP 67 rated

342,01 €*

Details

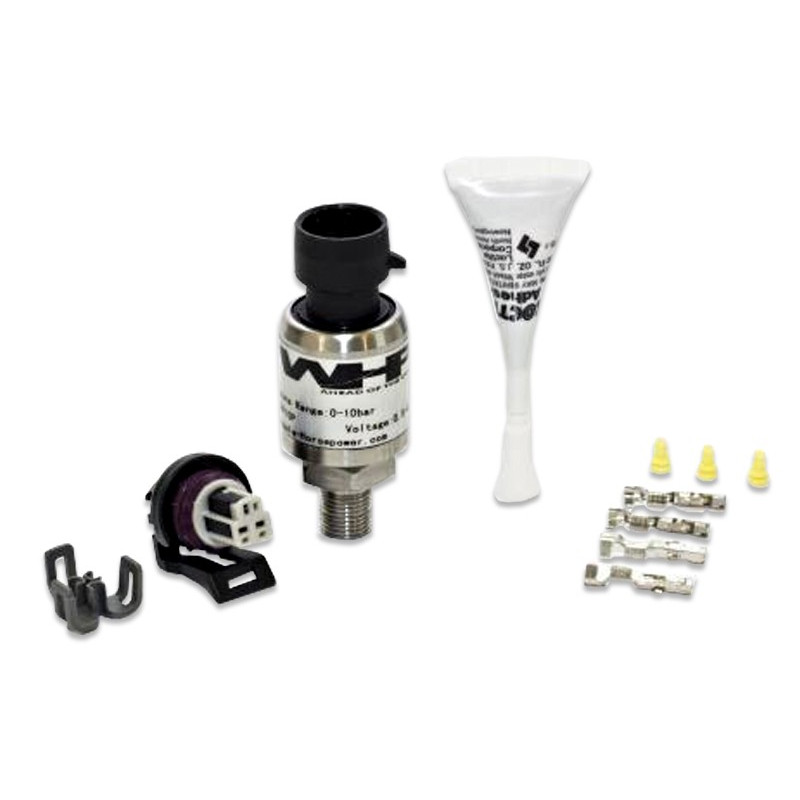

Drucksensor Öl/Kraftstoff 10 bar

10 bar Drucksensor Firma WHP (ein renommiertes Unternehmen in den Vereinigten Staaten). Dies sind die perfekten Sensoren für die präzise Messung der Drucköl, Kraftstoff oder Luft in automotive-Anwendungen. Drucksensoren WHP sind der ideale Begleiter für jedes Steuergerät. Werden gemäss ISO9001 Zertifikat erstellt.Druckmessung ist sehr genau (Genauigkeit 0,5 %). Die Sensoren sind aus Edelstahl 304 CNC gefertigt. Das Set besteht aus: 1 X Drucksensor WHP sind 10bar, 1 X set Plug-ins von den Terminals, 1 x Gewinde Dichtmittel auf der Loctive-Kleber Parameter: Spannungsbereich: 0,5-4 .5V Druckbereich: 0-sind 10barBefestigungsgewinde: 1/8 "NPT

105,00 €*

Details

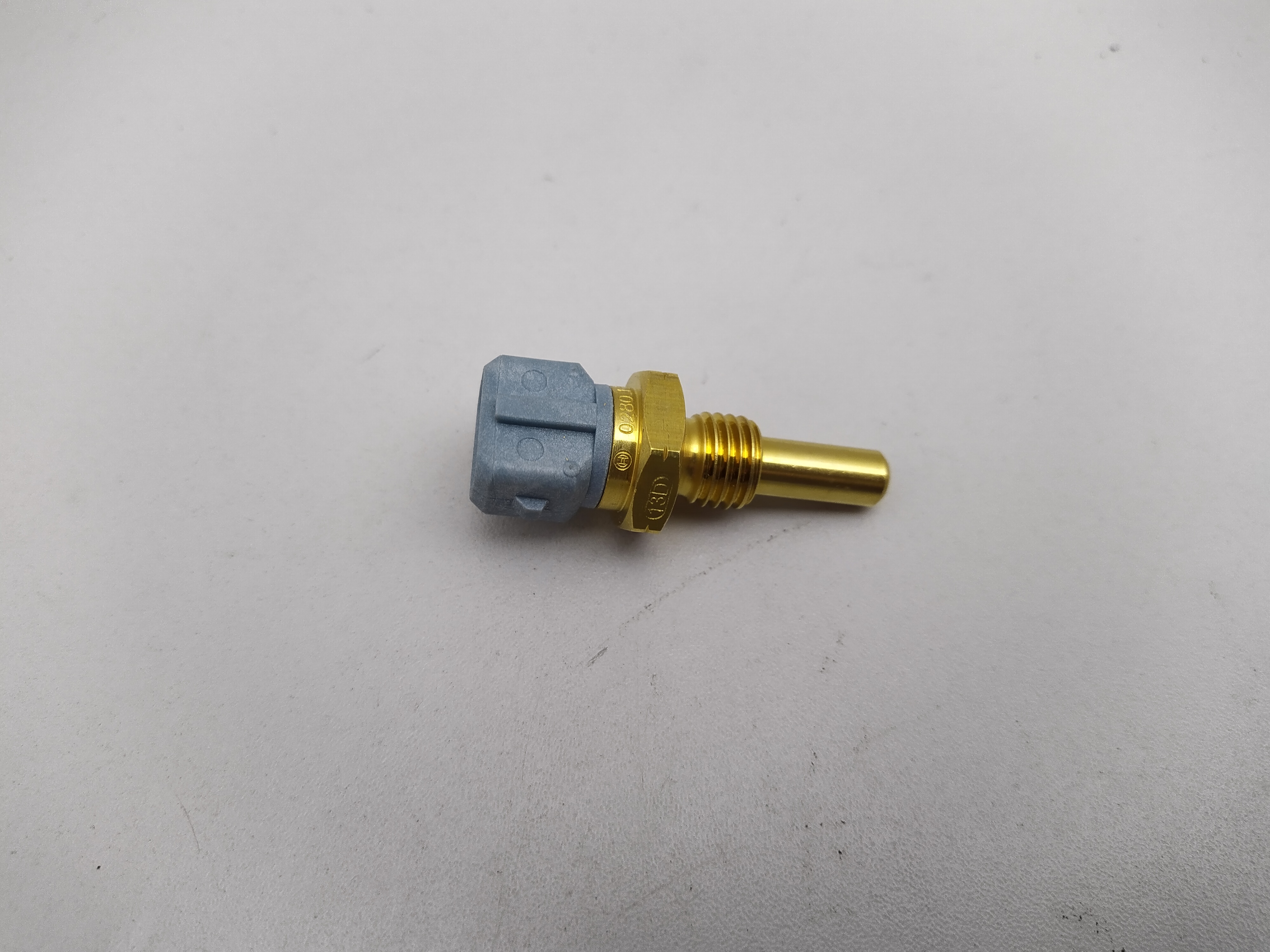

Bosch Sensor Kühlmitteltemperatur 0 280 130 026

Neuer Bosch Kühlmitteltemperartur Sensor Artikel-Nr.: 0 280 130 026

15,00 €*

Details

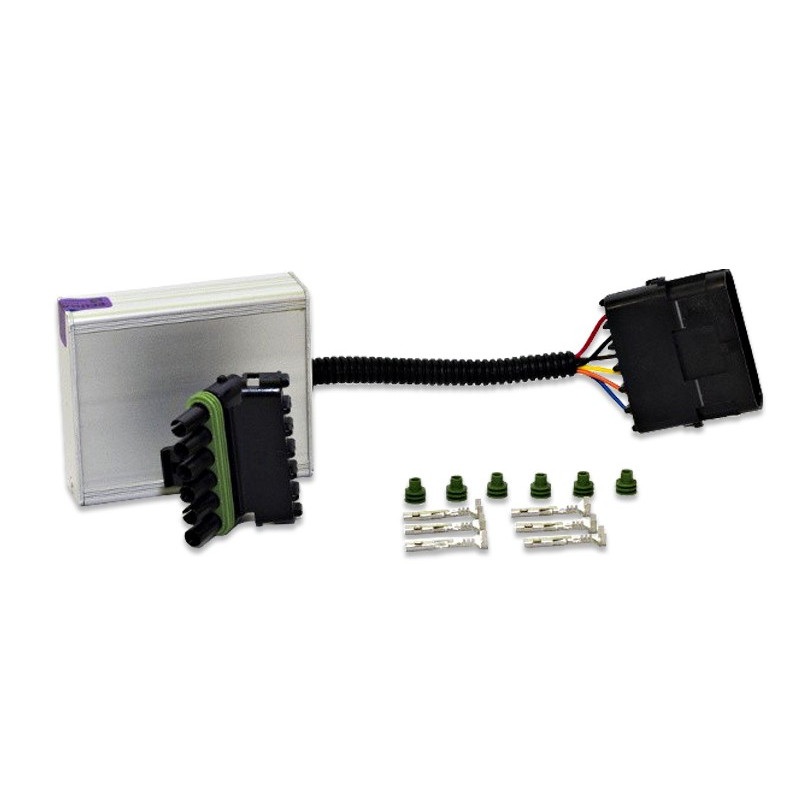

Ecumaster DBW MODULE (ELECTRONIC THROTTLE)

EMU Additional Modules Two additional modules are available to extend standard EMU performance: the DBW module and the CAN bus module. The DBW module is required to allow EMU to control the electronic throttle and it is connected to the an AUX or an INJ output. The CAN bus module is designed to be connected to an EMU extension port and facilitates CAN bus communication. Additionally, there are 4 further analogue inputs built-in on the CAN bus module. Note: The functions associated with operating the electronic throttle are used only for stationary testing (generators, test benches). For safety reasons, do not use the electronic throttle on a public road!!! CAN bus module features CAN 2.0B, 125-1000kbps bus speed, 4 analog inputs 0-5V, 10 bits, plugs into an extension port DBW module features up to 7A H-Bridge output current, only one EMU output required to control electronic throttle

99,00 €*

Details

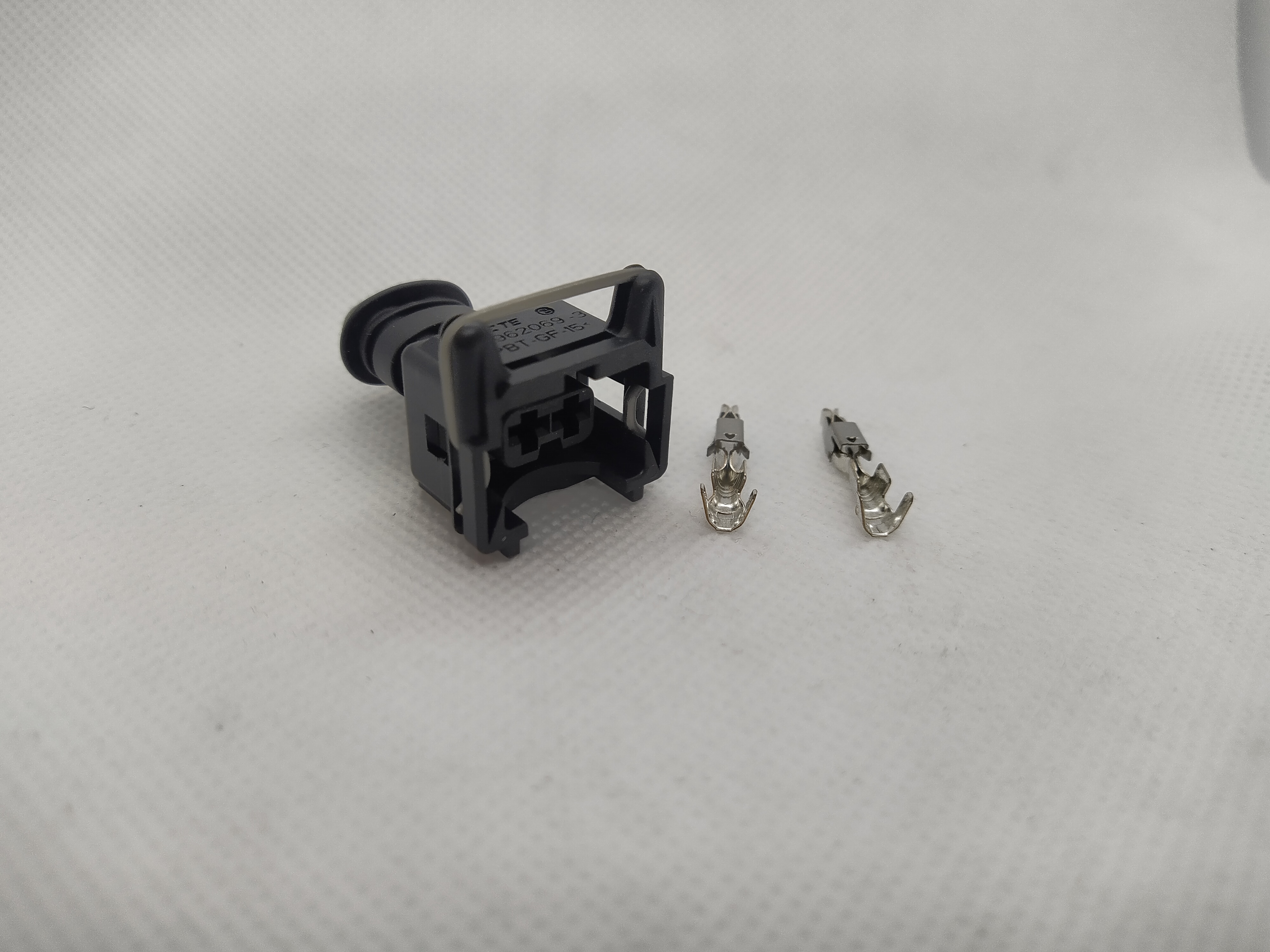

2 Pin JPT Stecker Steckerset Steckerkit für Jetronic usw.

2 Pin JPT Stecker.Passend für viele Einspritzdüsen und Sensoren aus dem Bosch Sortiment

5,00 €*

Details

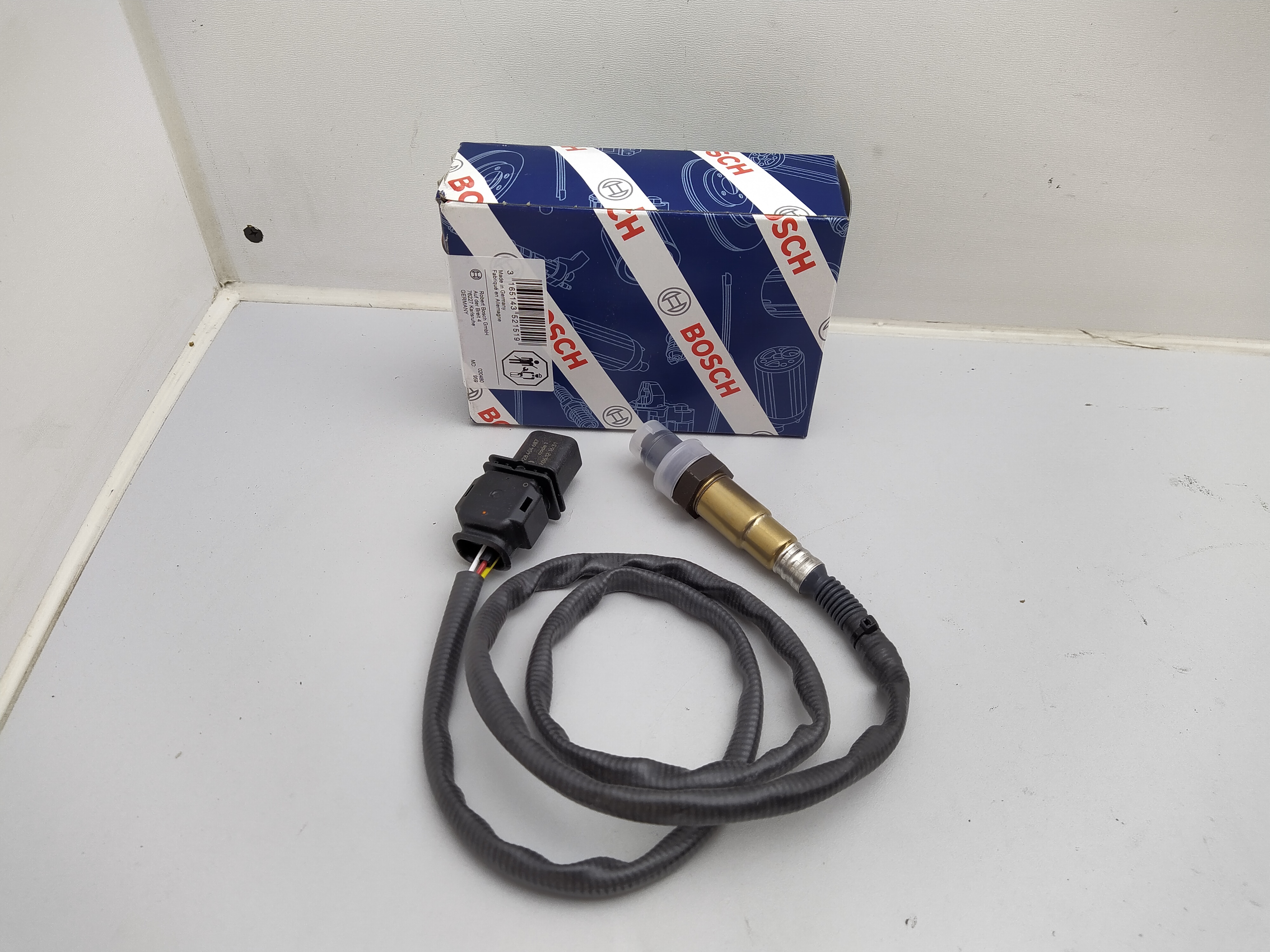

BOSCH LSU 4.9 Breitbandlamdasonde

Breitband Lambda Sonde BOSCH LSU 4.9

130,00 €*

Details

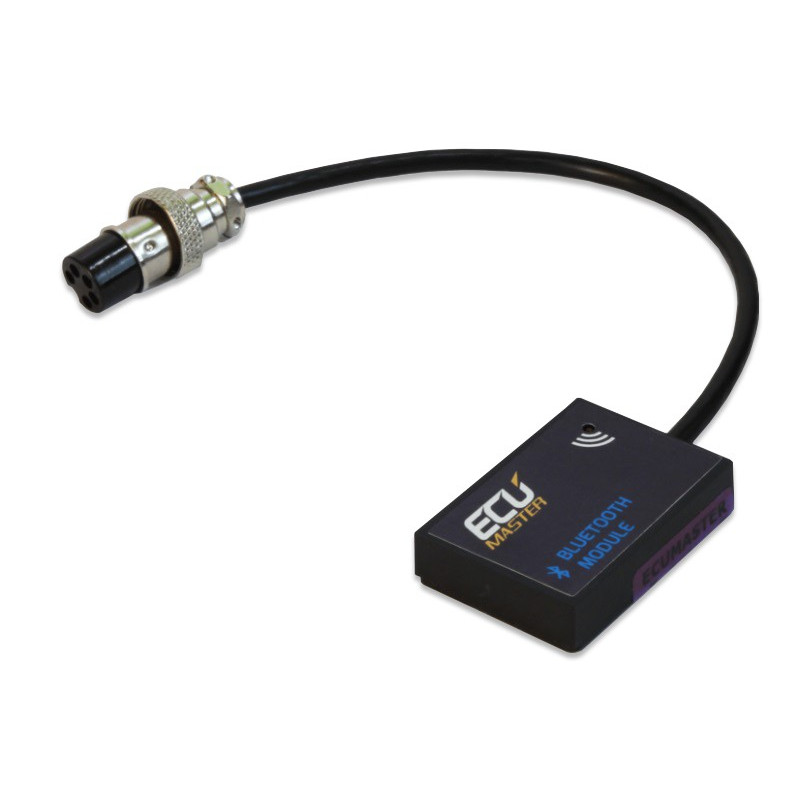

Ecumaster BLUETOOTH MODULE

BT MODULE Bluetooth module The Bluetooth module allows to transmit ECUMASTER log data via Bluetooth communication. It makes it possible to trace all important engine parameters in real-time using Android compatible devices. There is also a third party Dashboard application available. For more information see http://www.realdash.net. Download Files Bluetooth manual Bluetooth-CAN-BUS.pdf Key features Free application available in Google Play store Serial or CAN version available Logged channels: RPM, MAP, TPS, IAT, AFR, CLT, LAMBDA, BATTERY VOLTAGE, IGNITION ANGLE, INJECTORS PW, SEC. INJECTORS PW, INJECTORS DC, EGT #1 and #2, KNOCK LEVEL, DWELL TIME, CURRENT GEAR, BARO PRESSURE, ANALOG #1,#2,#3,#4, ECU TEMPERATURE, OIL PRESSURE, OIL TEMPERATURE, FUEL PRESSURE, ETHANOL CONTENT, FUEL TEMPERATURE, VEHICLE SPEED, FUEL PRESSURE DELTA,FUEL LEVEL, TABLES SET ,CHECK ENGINE CODE

49,90 €*

Details
